AL 4125 Mini Surface-Mount LED Pool and Step Light (202 mm)

AL 4125 Mini Surface-Mount LED Pool and Step Light (202 mm)

Name: AL 4125 Mini Surface-Mount LED Pool and Step Light (202 mm)
Brand: Aker Lighting
SKU: AL 4125
Availability: InStock

From 1.659₺The exact price appears as you choose options.

Brand: Aker Lighting · Authorised seller: ALK Lighting

Body Colour

LED Colour

Power

Voltage

Clear

Have a question? Ask on WhatsApp

💧

For underwater use only
Do not operate out of water; the LED heat is cooled by the water.

🎯

Application
Underwater in pools and on steps · suitable for salt water · resistant to pool chemicals, corrosion-free

🛠️ Made to order. No right of withdrawal or refund; unused products can be exchanged. Conditions →

Add to wishlist

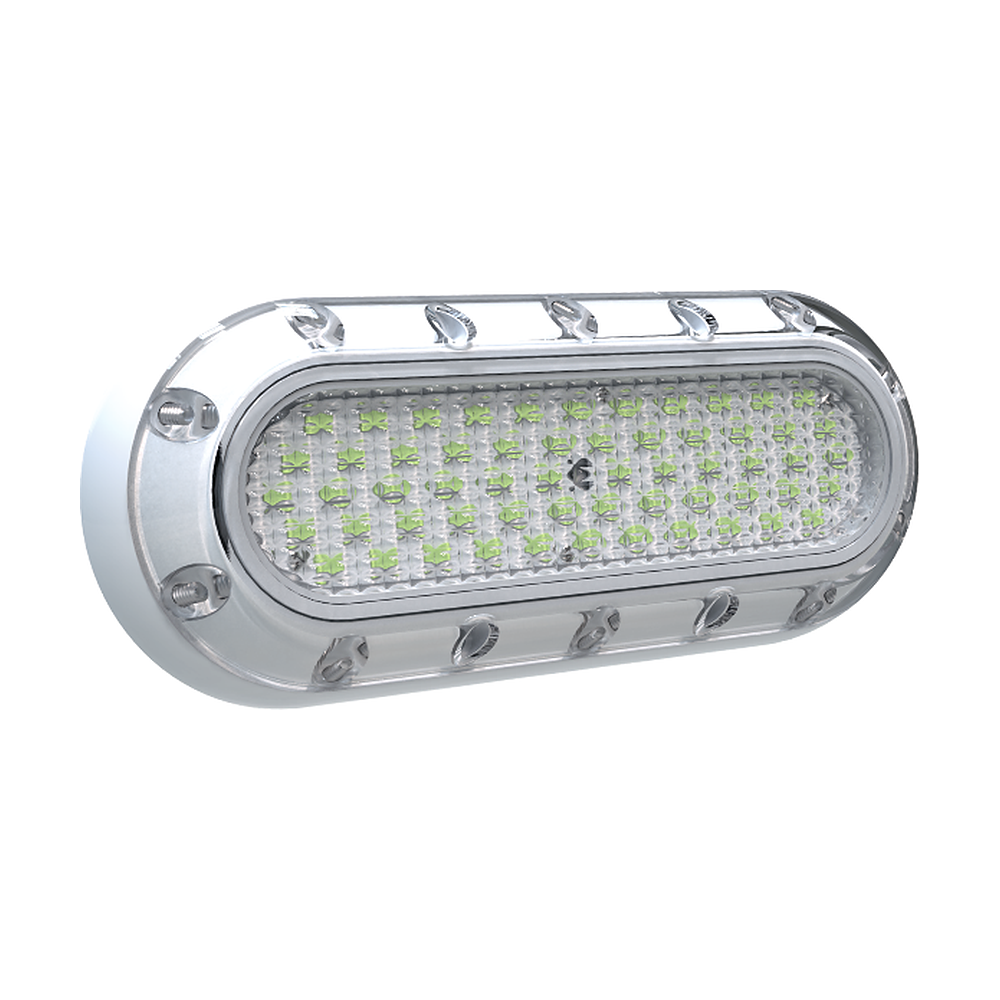

A surface-mount light with a patented thermal resin body and a mid-size mini capsule design, for use in pools and on pool steps. It is available in single colour, wireless RGB or 2-wire RGB versions and can be used in salt water.

Product code: AL 4125 Technical Data PDF

Technical Drawing

Product Features

Compact design: 202 × 85.5 mm, 28.5 mm high
Surface-mount for pool wall and step lighting
Single colour 24W: 2400 lm; RGB 18W
Thermal resin (smoke grey) or white body option
No remote needed for the RGB 2-wire model
IP68, suitable for salt water
2-year warranty

Technical Data

Light

LED: Single colour: 48 high-power SMD LEDs (5730)
RGB: 69 three-chip SMD LEDs (5050)
LED Colours: White (6000K), Warm White (3000K), Blue
RGB 4-wire (with wireless remote; fast/slow colour change, fixed colour)
RGB 2-wire (no remote needed, colour changes by switching on and off)
Luminous Flux: 24W: White and Warm White 2400 lm, Blue 1440 lm
RGB 69 LEDs: Red 140 lm, Green 375 lm, Blue 96 lm, all colours (white) 612 lm

Electrical

Power: Single colour 24W
RGB 18W
Voltage: Single colour 12V AC or 12V DC (24V option also available)
RGB 4-wire 12V DC
RGB 2-wire 12V AC
Cable: 1 m, 2 × 0.75 mm² RNF neoprene cable

Body and Mounting

Body: UV-resistant thermal resin cooling body; TR (smoke grey) or WH (white)
Glass: Special UV- and impact-resistant glass
Dimensions: 202 mm length
85.5 mm width
28.5 mm height
Mounting / Cut-out: Surface-mount; pool wall and pool steps

Application and Warranty

Protection Rating: IP68
CLASS III
CE
Application: Underwater in pools and on steps
suitable for salt water
resistant to pool chemicals, corrosion-free
Carton: 36 pcs/carton
46 × 32 × 39 cm
Warranty: 2 years

Technical Data PDFTechnical data, drawing and options · A4 Download

⚠️ Installation and usage warnings

RGB models are operated with the AL TC01-RGB controller; one AL TC01-RGB carries a maximum load of 120W. Up to 6 units of the 18W model can be connected to a single controller. If the total RGB power exceeds 120W, a special transformer or the AL RGBW/RGB POWER UNIT (power unit) must be used.
