AL 4075-PP TR Pipe-Mount LED Pool Light (63 mm Pipe)

AL 4075-PP TR Pipe-Mount LED Pool Light (63 mm Pipe)

Name: AL 4075-PP TR Pipe-Mount LED Pool Light (63 mm Pipe)
Brand: Aker Lighting
SKU: AL 4075BT
Availability: InStock

From 2.036₺The exact price appears as you choose options.

Brand: Aker Lighting · Authorised seller: ALK Lighting

Frame Colour

LED Colour

Power

Voltage

Clear

Have a question? Ask on WhatsApp

💧

For underwater use only
Do not operate out of water; the LED heat is cooled by the water.

🎯

Application
Pool and spa underwater · suitable for salt water · corrosion-free

🛠️ Made to order. No right of withdrawal or refund; unused products can be exchanged. Conditions →

Add to wishlist

AL 4075-PP TR is a patented pool light fitting with a thermal resin body, made to fit 63mm diameter pipes. Its UV-protected thermal resin cooling body provides high light output and a long lifetime, and resists pool chemicals and water. With its easy installation and suitability for salt water, it is a preferred choice for pipe-connected pool systems.

Product code: AL 4075BT Technical Data PDF

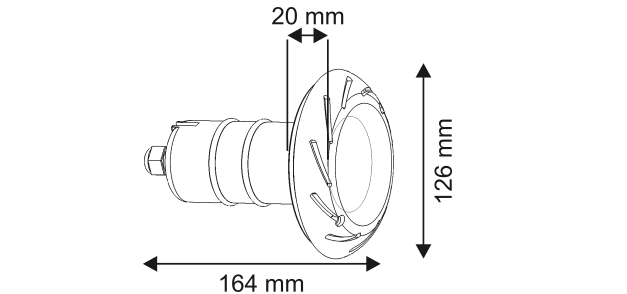

Technical Drawing

Product Features

Pipe-type light that fits directly into a 63 mm pool pipe
Thermal resin cooling body; black or white body, or 316L stainless steel frame
Only 20 mm projection from the wall
Single colour 15W: 1500 lm; RGB 9W
For pools and spas; IP68, suitable for salt water
2-year warranty

Technical Data

Light

LED: TR / WH: single colour 30 power SMD LEDs (5730), RGB 42 3-chip SMD LEDs (5050)
SS: 3 × 1W / 3 × 3W power LED, 3 × 4W high-output Power LED, RGB 3 × 3W
LED Colours: TR / WH: White (6000K), Warm White (3000K), Blue, RGB
SS: White, Warm White, Blue, Green, Amber, Red, RGB (3 × 4W: Warm White)
Luminous Flux: TR / WH: White and Warm White 1500 lm, Blue 900 lm
SS (White / Warm White): 3W 300 lm, 6.6W 660 lm, 12W 1680 lm

Electrical

Power: TR / WH: single colour 15W, RGB 9W
SS: 3 × 1W = 3W, 3 × 3W = 6.6W, 3 × 4W = 12W, RGB 3 × 3W = 9W
Voltage: 12V or 24V DC (RGB 12V only)
Cable: 1 m, 2 × 0.75 mm² RNF neoprene cable

Body and Mounting

Body: UV-protected thermal resin cooling body; black or white
Frame / Cover: TR / WH: clear cover

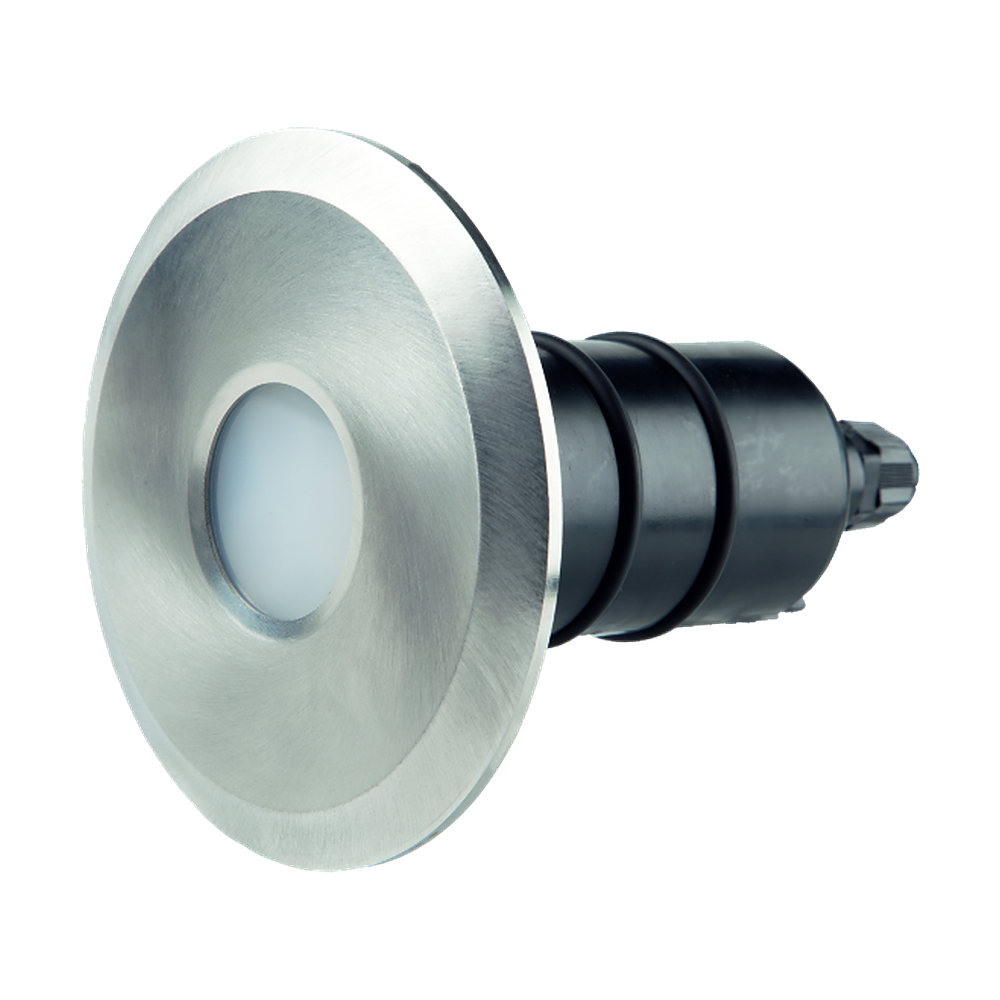

SS: AISI 316L stainless steel frame
Glass: UV- and impact-resistant glass
Dimensions: TR / WH: front cover Ø126 mm, overall length 164 mm, wall projection 20 mm
SS: front cover Ø124 mm, overall length 161 mm
Mounting / Cut-out: Fits into a 63 mm pool pipe (pipe type); pool and spa

Application and Warranty

Protection Rating: IP68
CLASS III
CE
Application: Pool and spa underwater
suitable for salt water
corrosion-free
Carton: 1 pc/box
13 × 13 × 20 cm (TR / WH 0.4 kg, SS 0.8 kg)
Warranty: 2 years

Technical Data PDFTechnical data, drawing and options · A4 Download

⚠️ Installation and usage warnings

RGB models are operated with the AL TC01-RGB controller; one AL TC01-RGB carries a maximum load of 120W. Up to 13 units of the 9W model can be connected to a single controller. If the total RGB power exceeds 120W, a dedicated transformer or the AL RGBW/RGB POWER UNIT must be used.
